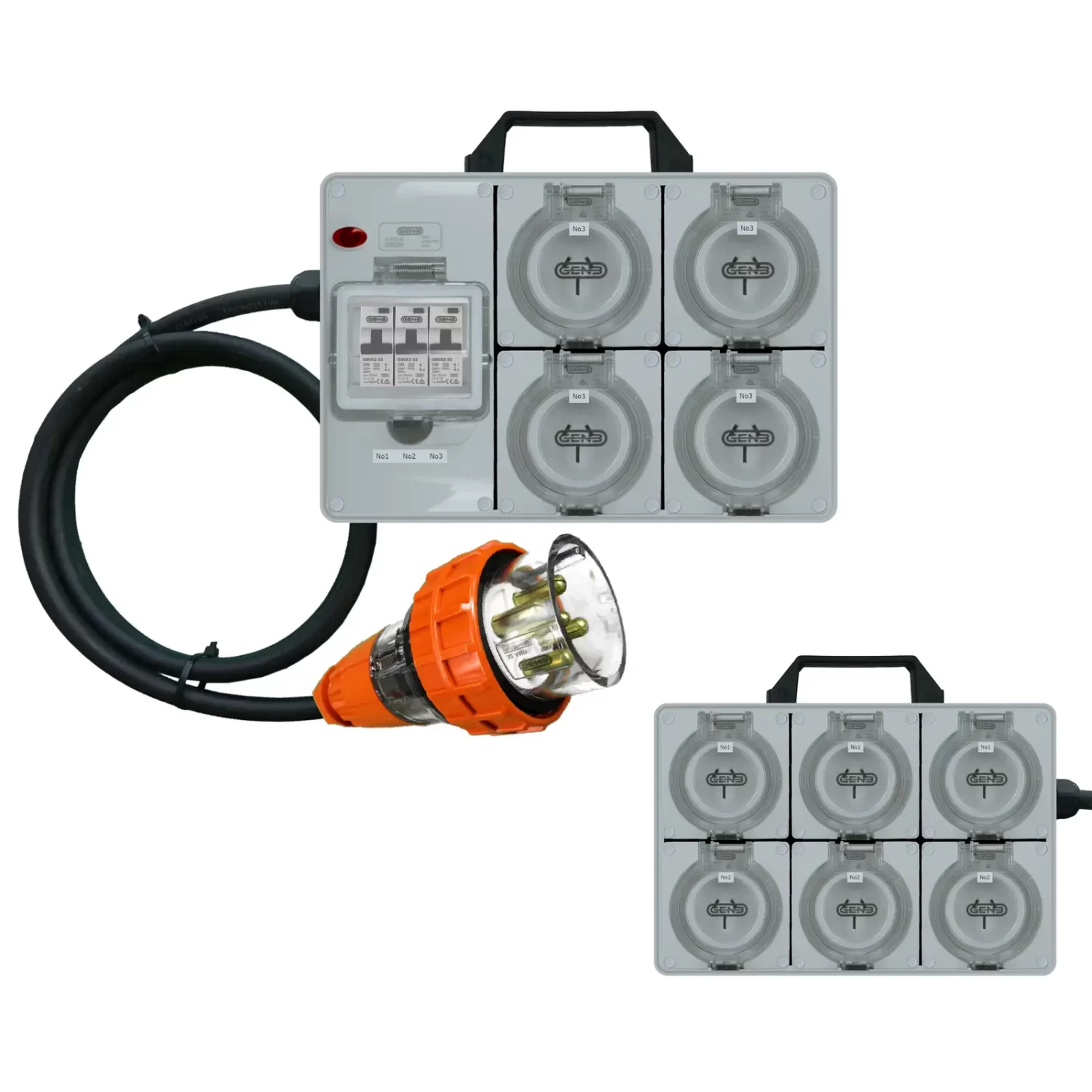

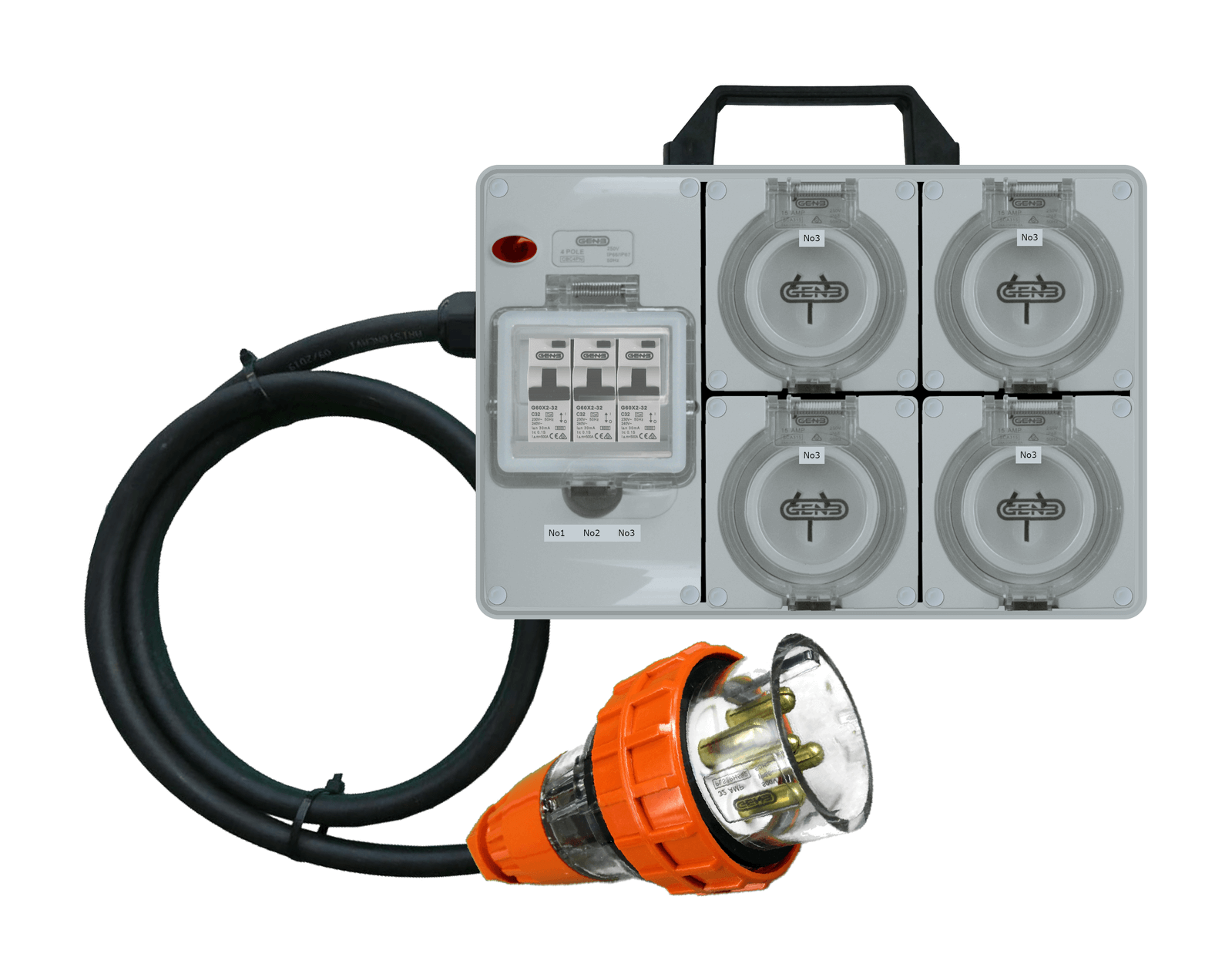

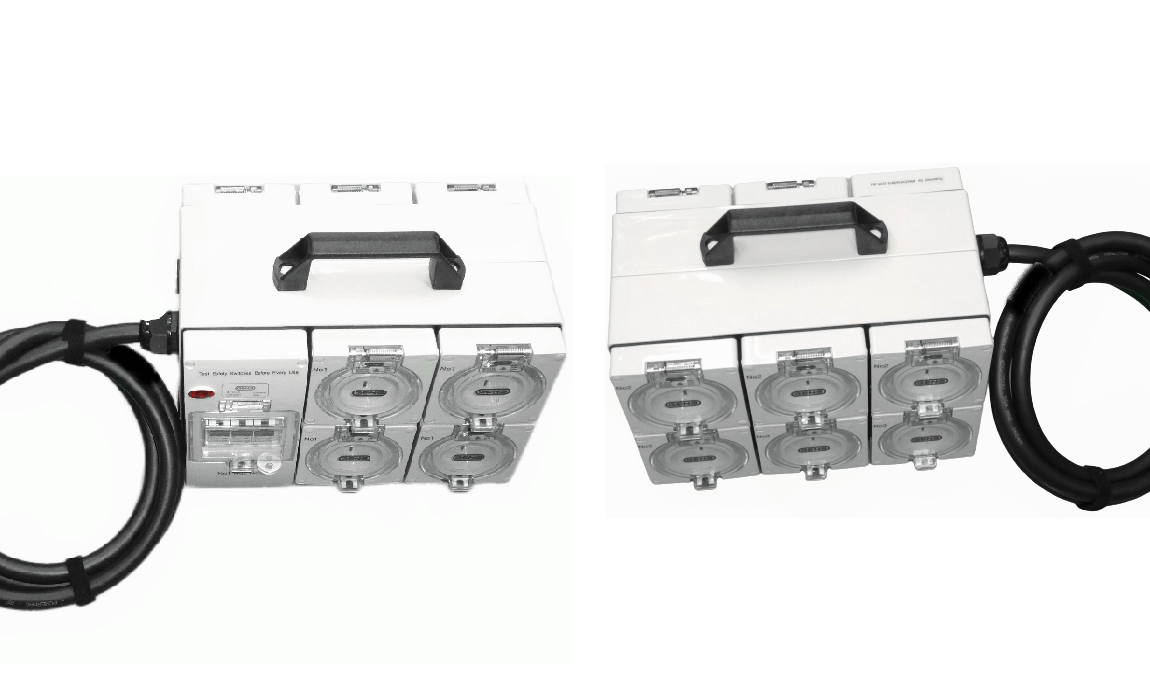

This 20 Amp 3 Phase Distribution Board is designed to safely distribute power to up to 10 individual 15 Amp single-phase outlets. It offers a compact, efficient solution for low-to-medium load environments such as exhibitions, events, workshops, and commercial fit-outs. With integrated RCBO protection on each outlet, the board ensures circuit safety, fault isolation, and compliance with Australian standards. Built for portability or fixed installation, it’s a practical choice for versatile site power management.
Key Features:
-

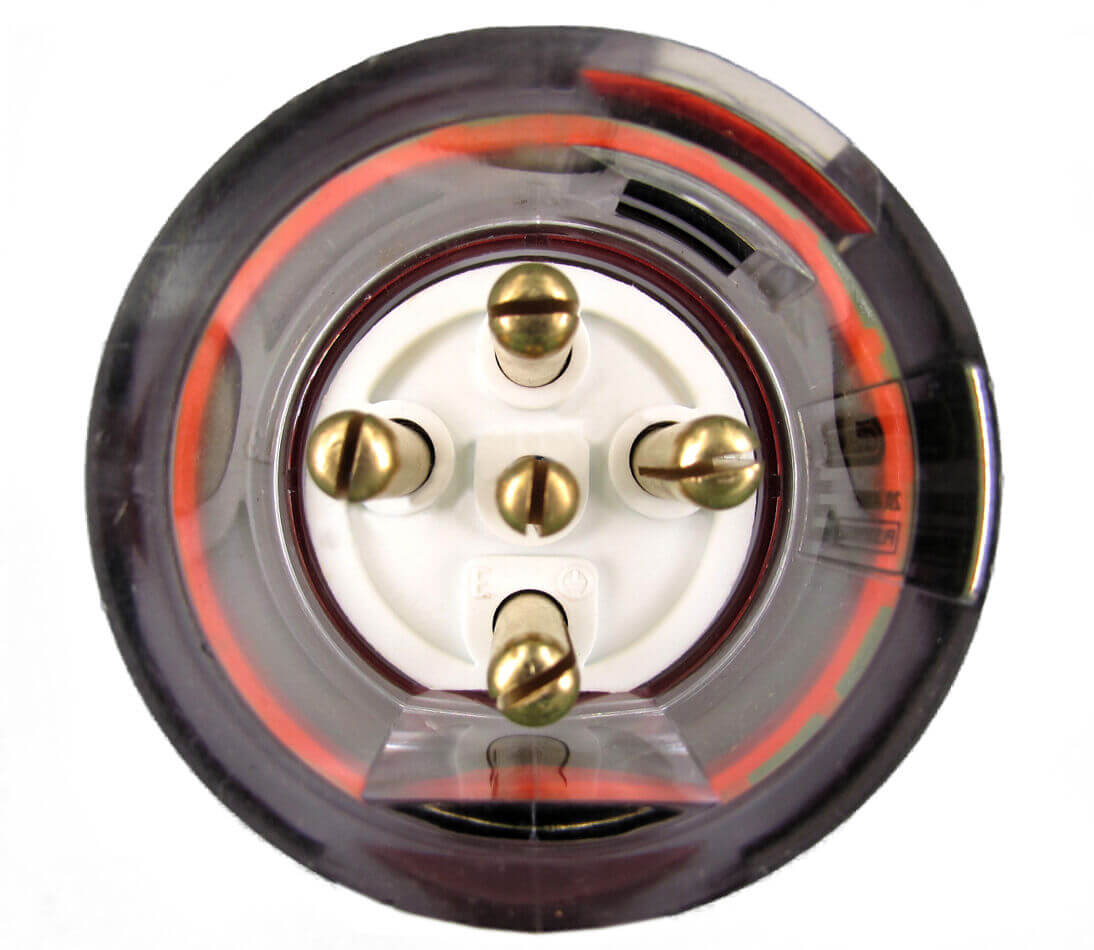

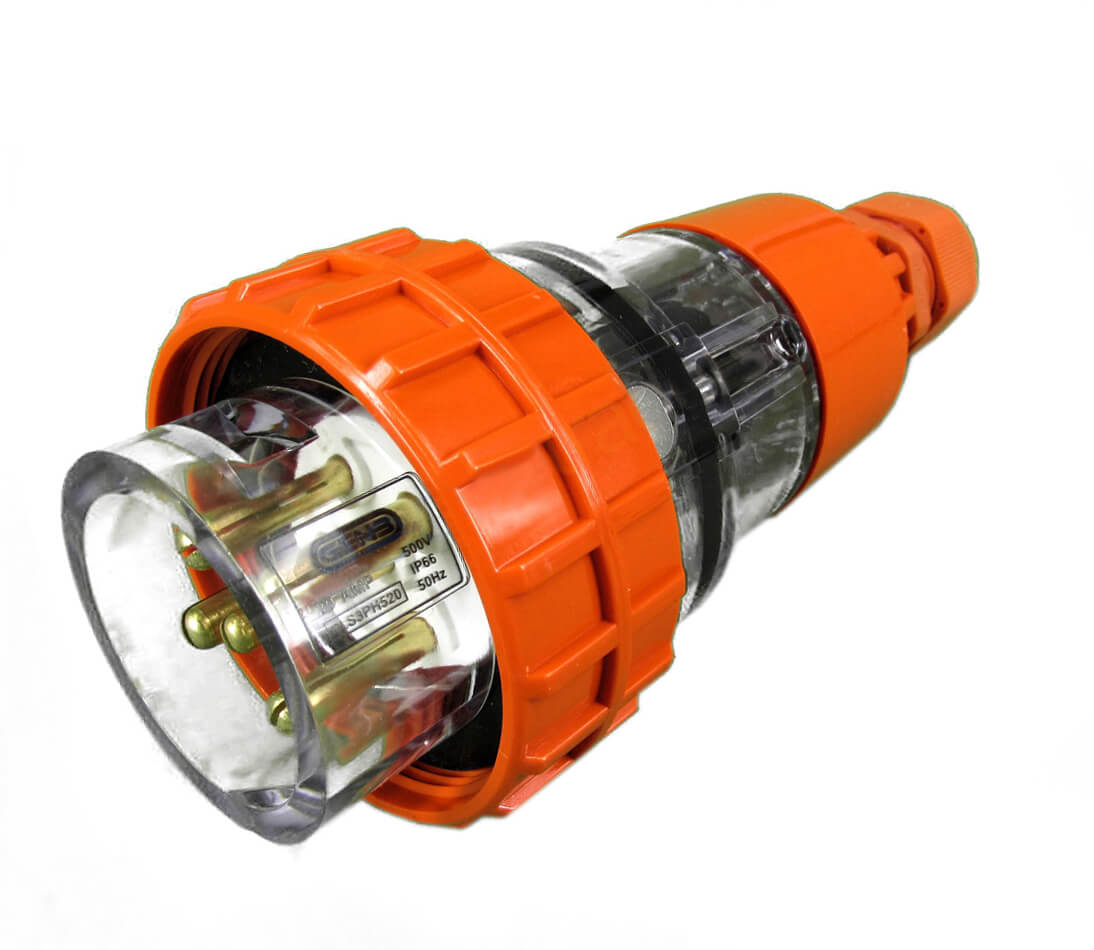

Connection Type: 5 Pin 20A Three Phase input to 10 × 3 Pin 15A Single Phase outlets
-

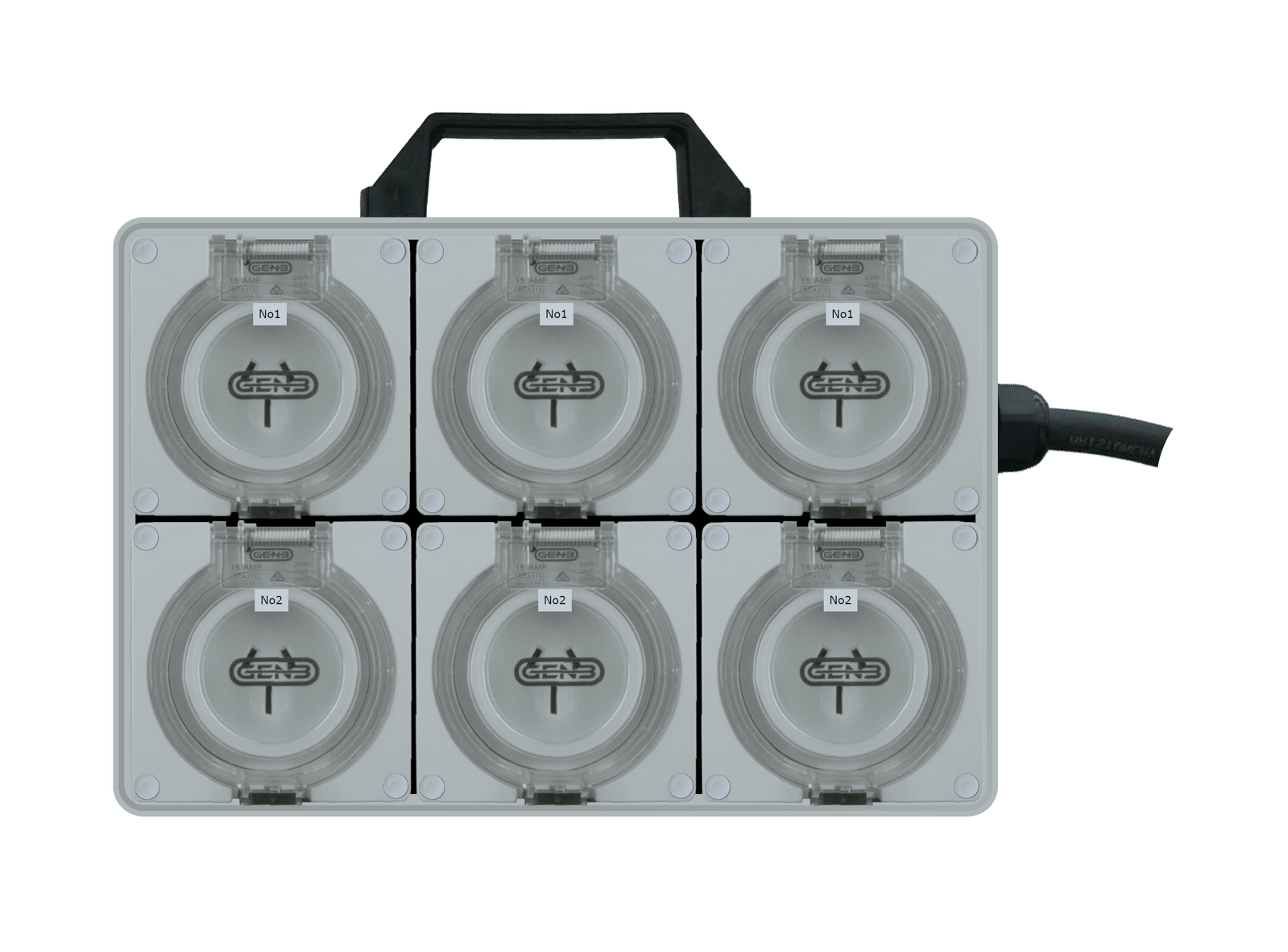

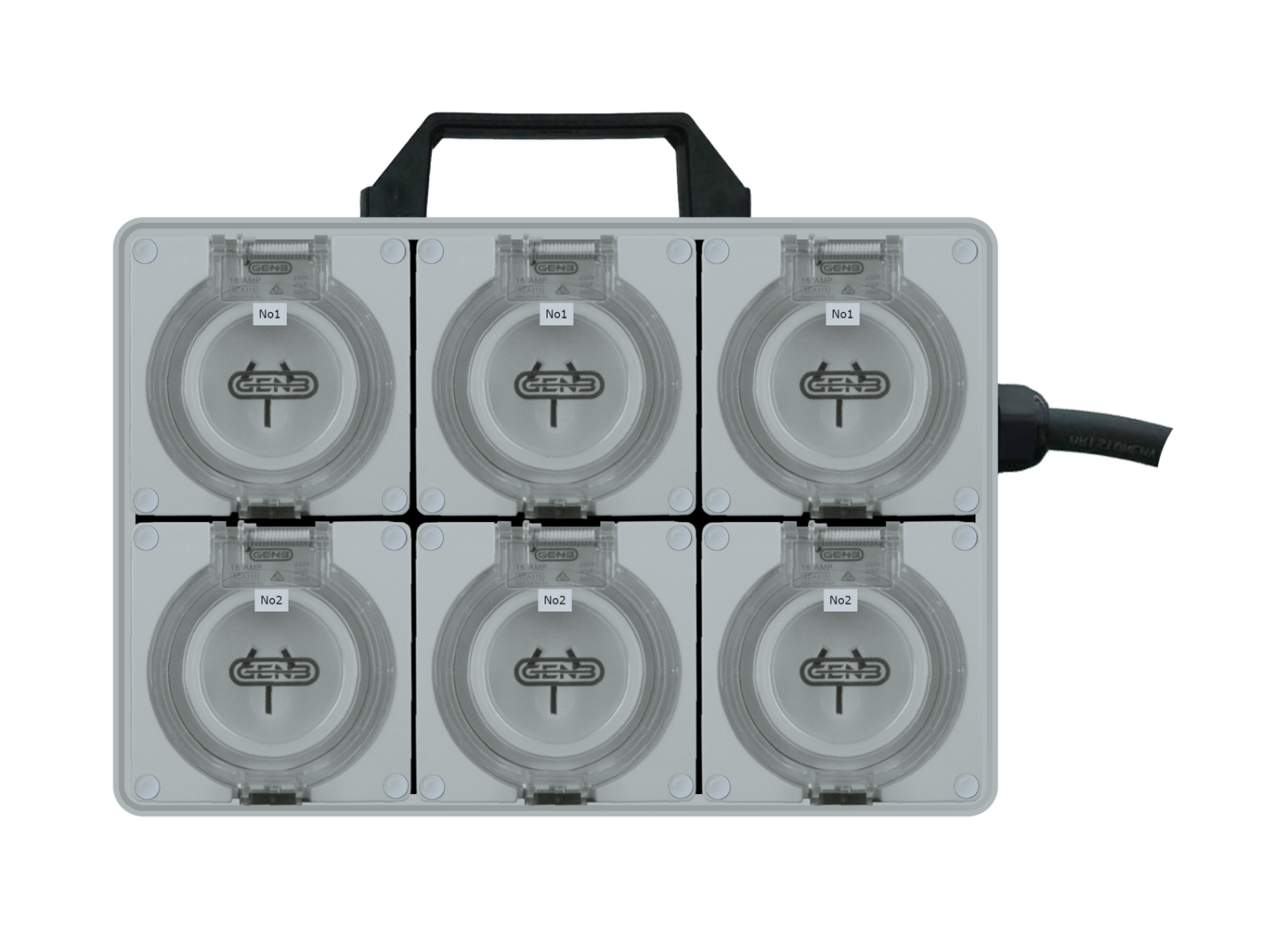

Outlet Type: 10 individually protected 15A Single Phase outlets
-
Protection: Fitted with 10 × double-pole 6kA RCBOs for full circuit safety
-
Compact and Efficient Design: Ideal for mobile and fixed setups
-
Custom Lead Options: Available with various heavy-duty cable lengths
-
Fully Compliant: Assembled and tested by licensed electricians in accordance with Australian standards
