Power Supply
Power Supply
20 Amp 3 Phase Distribution Board to 6 x 15 amp outlets
- Phase: 3-Phase Surface/Flush Mounted Distribution Board
- Current: 20 Amps per phase
- IP Rating: IP44 minimum (IP65 for outdoor use)
- Voltage: 400V AC
- Material: Powder-coated steel / polycarbonate
- Frequency: 50/60Hz
32 Amp 3 Phase Distribution Board to 6 x 15 amp outlets
- Phase: 3-Phase Distribution Board (Surface or Flush Mount)
- Current: 32A
- Voltage: 400V AC (3 Phase + Neutral + Earth)
- Material: Powder-coated steel or polycarbonate
- Circuit Protection: IP44 (indoor) / IP65 (outdoor/industrial use)
- Frequency: 50/60Hz

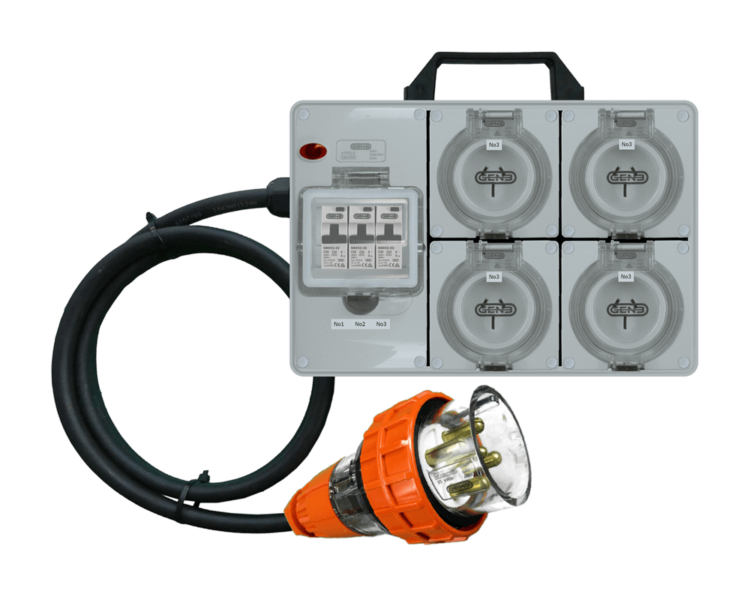

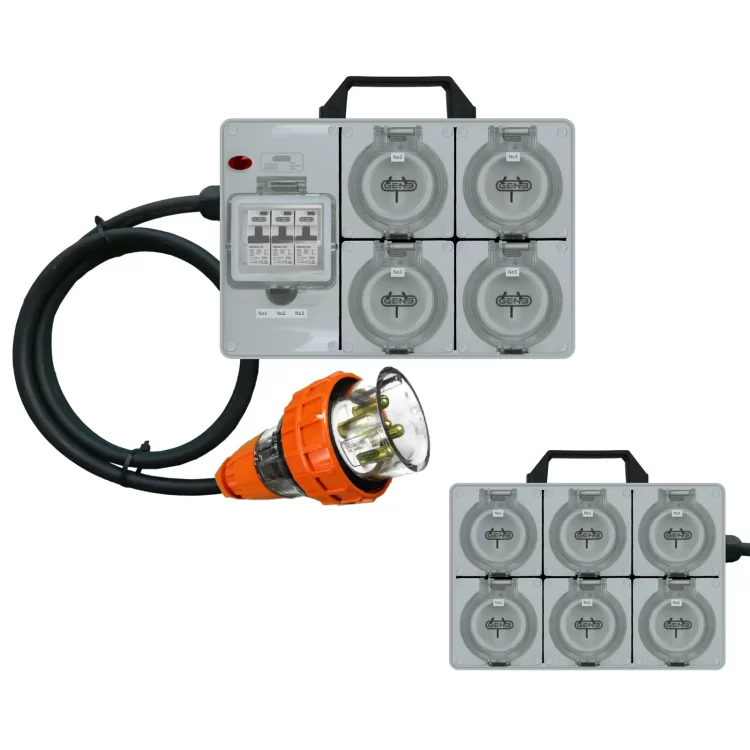

32 Amp 3 Phase Distribution Board to 10 x 15 Amp Outlets
- Plug Type: 32A, 5 Pin, 3 Phase + Neutral + Earth
- Voltage: 400V AC (3 Phase)
- Enclose Material: UV-Stabilized Polycarbonate / Powder-Coated Steel
- Circuit Protection: 10 × GEN3 Double Pole 6kA RCBOs (Single Phase)
- Frequency: 50/60 Hz

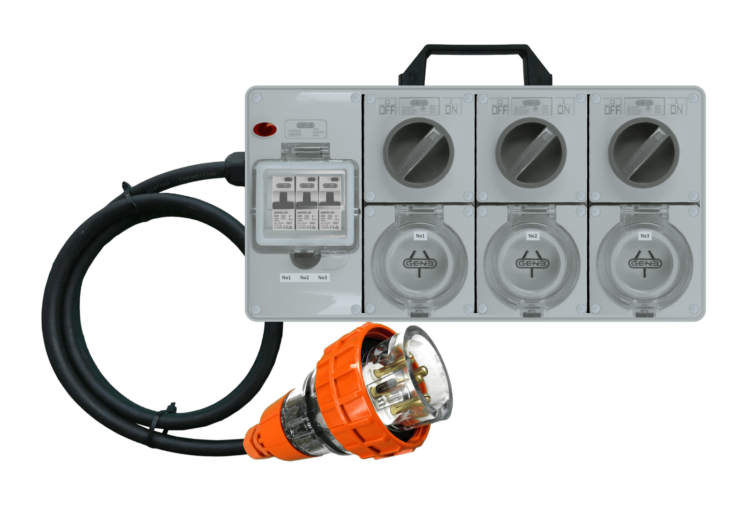

20 Amp 3 Phase Distribution Board to 3 x 20 Amp Single Phase outlets
- Plug Type: 20A 5 Pin 3 Phase + Neutral + Earth
- Voltage: 400V AC
- Enclose Material: Polycarbonate or Powder-Coated Steel (IP44/IP65)
- Circuit Protection: 3 × Double Pole 6kA RCBOs
- Frequency: 50/60 Hz
32 Amp 3 Phase Distribution Board to 3 x 20 Amp Single Phase outlets
- Plug Type: 32A, 5 Pin (3P + N + E)
- Voltage: 400V AC (3 Phase)
- Enclose Material: UV-stabilized polycarbonate or powder-coated steel
- Circuit Protection: 3 × Double Pole 6kA RCBOs (1 per outlet)
- Frequency: 50/60 Hz
20 Amp 3 Phase Distribution Board to 10 x 15 Amp Outlets
- Plug Type: 20A, 5 Pin (3P + N + E)
- Voltage: 400V AC
- Enclose Material: Polycarbonate or powder-coated steel
- Circuit Protection: 10 × Double Pole 6kA RCBOs
- Frequency: 50/60 Hz

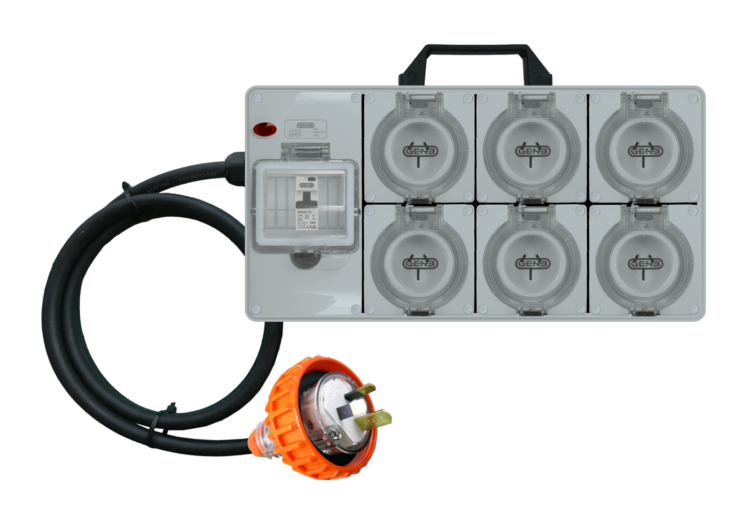

15 Amp Single Phase Distribution Board to 6 x 15 Amp outlets
- Plug Type: 15A, 3 Pin (Active + Neutral + Earth)
- Voltage: 230V AC
- Enclose Material: UV-resistant polycarbonate or powder-coated metal
- Circuit Protection: 6 × Double Pole 6kA RCBOs (1 per outlet)
- Frequency: 50/60 Hz
20 Amp Single Phase Distribution Board to 6 x 15 Amp Outlets
- Plug Type: 20A, 3 Pin (Active + Neutral + Earth)
- Voltage: 230V AC
- Enclose Material: Polycarbonate or powder-coated metal
- Circuit Protection: 6 × Double Pole 6kA RCBOs
- Frequency: 50/60 Hz

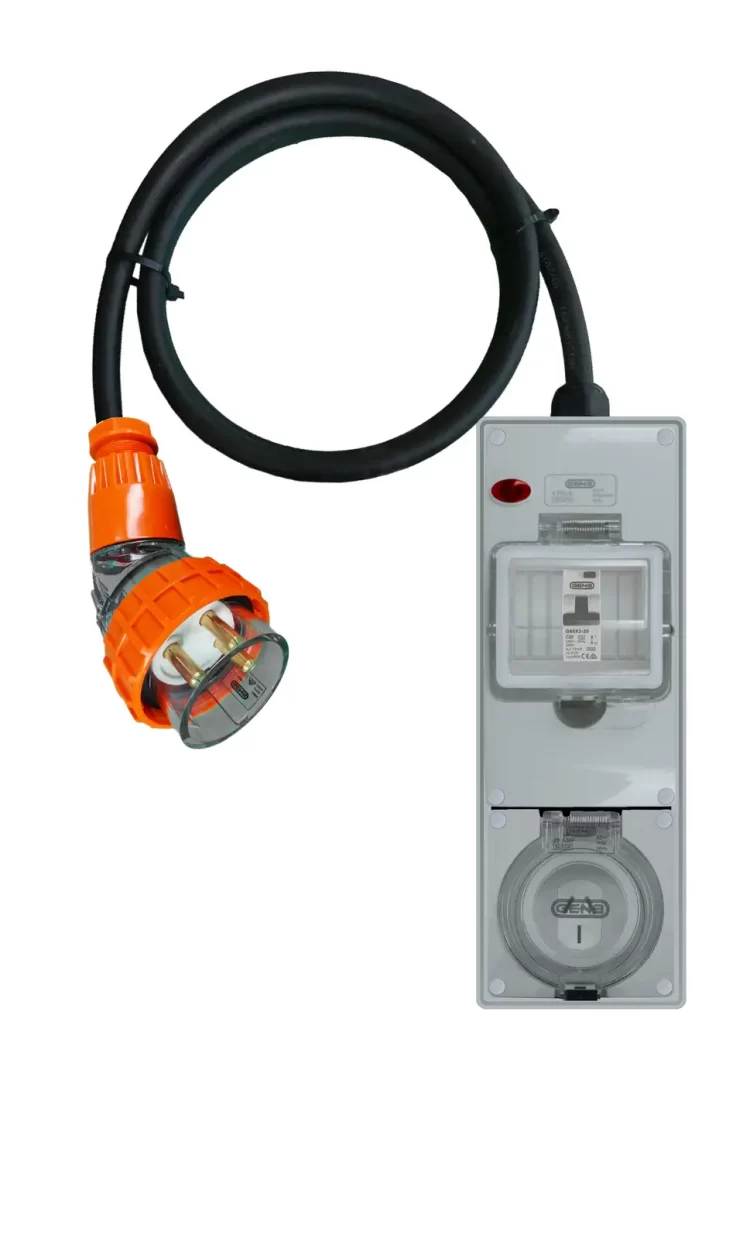

32 Amp Single Phase to 20 Amp Flat Single Phase
- Plug Type: 32A, 3 Pin (Active + Neutral + Earth)
- Voltage: 230V AC (Single Phase)
- Enclose Material: Polycarbonate or powder-coated steel
- Circuit Protection: 1 × Double Pole 6kA RCBO
- Frequency: 50/60 Hz

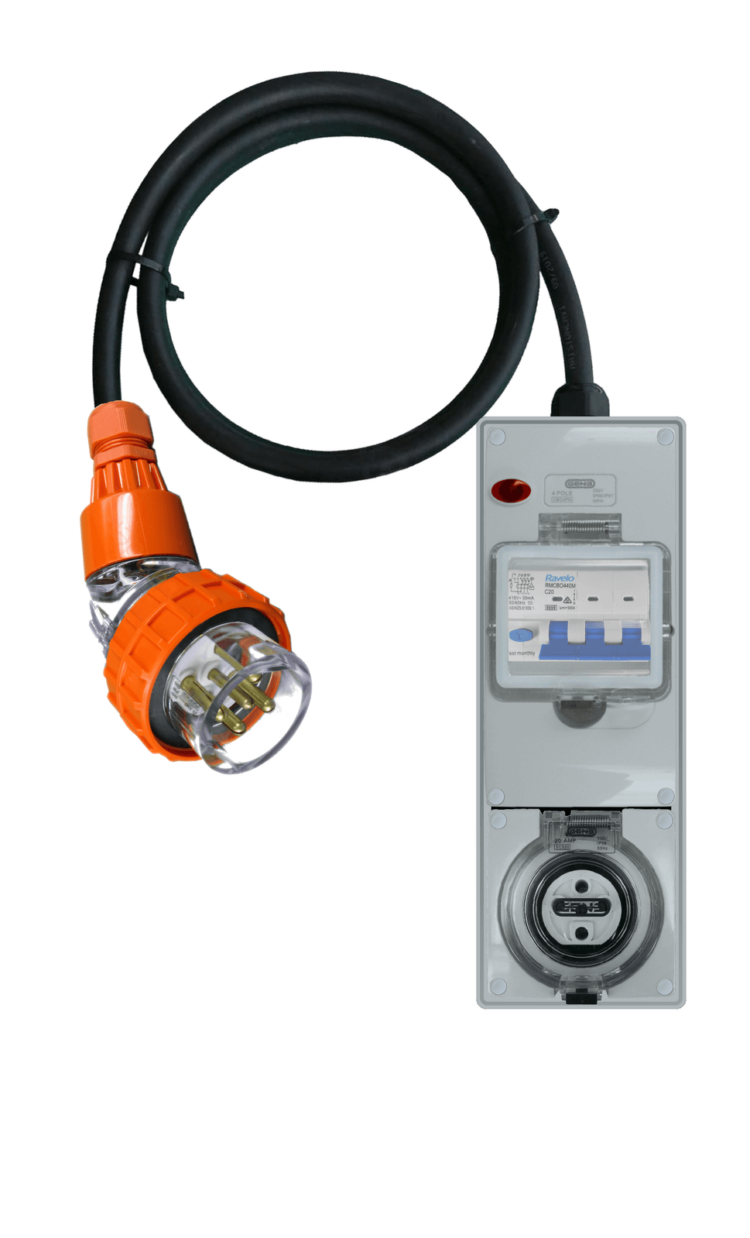

32 Amp 3 Phase 5 Pin to 20 Amp 3 Phase 5 Pin
- Plug Type: 32A, 5 Pin (3 Phase + Neutral + Earth)
- Voltage: 400V AC
- Enclose Material: Polycarbonate or powder-coated steel
- Circuit Protection: 1 × 20A 4P RCBO (6kA)
- Frequency: 50/60 Hz
3 Pin 20 Amp Flat Pin Plug to 3 Pin 20 Amp Round Socket Single Phase 2.5m
- Phase: Single Phase
- Plug Type: 3 Pin 20 Amp Flat Pin Plug
- Cross-Sectional Area: 2.5mm²
- Sheath Thickness: 1.8mm
- Socket Type: 3 Pin 20 Amp Round Socket
- Cable Length: 2.5m
- Rated Voltage: 600V
3 Pin 20 Amp Round Pin Plug to 3 Pin 20 Amp Flat Socket Single Phase 2.5m
- Phase: Single Phase
- Plug Type: 3 Pin 20 Amp Round Pin
- Socket Type: 3 Pin 20 Amp Flat
- Cable Length: 2.5m
- Rated Voltage: 250V
4 Pin 20A Plug to 5 Pin 20A Socket Adapter – 4 Pin Appliance to 5 Pin Extension Cord
- Plug Type: 4 Pin 20 Amp Australian Straight Plug
- Socket Type: 5 Pin 20 Amp Australian Socket
- Rated Voltage: 500V
4 Pin 32 Amp Australian Plug to 4 Pin 32 Amp Reefer Socket
- Phase: Three Phase
- Plug Type: 4 Pin 32 Amp Australian Plug
- Cross-Sectional Area: 4mm²
- Sheath Thickness: 2.1 mm
- Socket Type: 4 Pin 32 Amp Reefer Socket
- Rated Voltage: 600V
4 Pin 32 Amp Reefer Plug to 4 Pin 32 Amp Australian Socket
- Phase: Three Phase
- Plug Type: 4 Pin 32 Amp Reefer Plug
- Cross-Sectional Area: 4mm²
- Sheath Thickness: 2.1 mm
- Socket Type: 4 Pin 32 Amp Australian Socket
- Rated Voltage: 600V
5 Pin 20 Amp Australian Plug to 5 Pin 16 Amp CEE 3 Phase 2.5m
- Phase: Three Phase
- Plug Type: 5 Pin 20 Amp Australian Plug (Straight/Angled option)
- Socket Type: 5 Pin 16 Amp CEE Form Socket
- Cable Length: 2.5m
- Rated Voltage: 600V
5 Pin 32 Amp Australian Plug to 5 Pin 32 Amp CEE 3 Phase 2.5m
- Phase: Three Phase
- Plug Type: 5 Pin 32 Amp Australian Plug (Straight/Angled option)
- Socket Type: 5 Pin 32 Amp CEE Form Socket
- Cable Length: 2.5m
- Rated Voltage: 600V
5 Pin 32 Amp CEE Plug to 5 Pin 32 Amp Australian Plug 3 Phase 2.5m
- Phase: Three Phase
- Plug Type: 5 Pin 32 Amp CEE Form Plug
- Socket Type: 5 Pin 32 Amp Australian Plug
- Cable Length: 2.5m
- Rated Voltage: 600V
4 Pin 32 Amp Australian Straight Plug to 5 Pin 32 Amp Australia Socket – for 4 Pin Appliances using 5 pin extension chords
- Plug Type: 32A 4 Pin (3 Phase + Earth) – AS/NZS 3123
- Voltage: 400V AC
- Enclose Material: UV-stabilized polycarbonate or rugged industrial plastic
- Circuit Protection: Not fused – direct passthrough (add-on protection optional)
- Output: 32A 5 Pin (3 Phase + Neutral + Earth) – AS/NZS 3123
- Frequency: 50/60 Hz
3.8kVa 14.5Amps Inverter Petrol Generator
- Phase: Single Phase 240 Volt
- Stand up Capacity: 3.8 kW / 3.8 kVA
- Operating Noise Level (at 7m): 55-63 dBA at 7 Metres
- Fuel Tank Capacity: 6 Litres
- Voltage: 230V
- Output: 3.8 kVa
- Product Dimensions (mm): 848(L) x 700(W) x721(H)
- Frequency: 50 Hertz
7.6kVa 32Amps Inverter Petrol Generator
- Phase: Single Phase 240 Volt
- Stand up Capacity: 3.8 kW / 3.8 kVA
- Operating Noise Level (at 7m): 55-63 dBA at 7 Metres
- Fuel Tank Capacity: 6 Litres
- Voltage: 230V
- Output: 3.8 kVa
- Product Dimensions (mm): 848(L) x 700(W) x721(H)
- Frequency: 50 Hertz
7.5kVa 27 Amps Inverter Petrol Generator
- Rated AC Output: 5500VA
- Max. AC Output (power factor 1.0): 7000VA
- Operating Noise Level (at 7m): 52dB(A)††/ 65dB(A)
- Continuous Operating Hours: 18hr††/6.5hr
- Fuel Tank Capacity: 19.2 Litres
- Product Dimensions (mm): 848(L) x 700(W) x721(H)
14kVa 63 Amps Inverter Petrol Generator
- Rated AC Output: 5500VA
- Max. AC Output (power factor 1.0): 7000VA
- Operating Noise Level (at 7m): 52dB(A)††/ 65dB(A)
- Continuous Operating Hours: 18hr††/6.5hr
- Fuel Tank Capacity: 25 Litres
- Product Dimensions (mm): 848(L) x 700(W) x721(H)
