Testing Equipment
Testing Equipment
Digital Micromanometer
- Static/Differential Pressure: Range: -28.0 to +28.0 mm Hg, -3735 to +3735 Pa, Accuracy: ±0.01 mm Hg, ±1 Pa, Resolution: 0.01 mm Hg, 0.1 Pa
- Velocity From a Pitot Tube: Range: 1.27 to 78.7 m/s, Accuracy: ±1.5% at 10.16 m/s, Resolution: 0.1 m/s
- Volumetric Flow Rate: Range: Actual range is a function of velocity, pressure, duct size, and K factor
- Instrument Temperature Range: Operating: 5 to 45°C, Storage: -20 to 60°C
- Data Storage Capabilities: Range: 12,700+ samples and 100 test IDs
- Logging Interval: 1 second to 1 hour
- Time Constant: User-selectable
- External Meter Dimensions: 840 mm x 1780 mm x 440 mm
- Meter Weight with Batteries: 0.27 kg
- Power Requirements: Four AA-size batteries or optional AC adapter
- Dimensions: 100 to 6350 mm in increments of 1 mm
Dry Floor Friction Slip Tester
- Friction Foot Material: Type Four S rubber
- Power Requirement for Charging: 240 volt single phase 50Hz
- Internal Battery Pack (ten battery cells): 12 volts
- Instrument Weight with carry case: 11 kg
- Instrument Weight (kg): 6
- Includes: – Instrumental Carry case, – USB Memory Stick to, – One roll Printer Paper, – Conditioning tool for rubber foot
- Dimensions: 425 x 245 x 160 mm
Dry & Wet Floor Friction Slip Tester
- Complete Kit Dimension:: 426 x 307 x 104 mm
- Complete Kit/Carrying Case Weight: 3.3kg
- Friction Foot Material: Neolite
- Instrument Weight (kg): 2.2
- Includes: – Instrumental Carry case, – Instruction Manual & Sand Paper, – Dry & Wet Floor Friction Slip Tester, – Supply Kit: *3 Identical sets of sensors with Neolite feet *Calibration Chain *Heavy Duty Brush *Testing Lines
Wet Pendulum Slip Resistance Friction Tester
- Friction Foot Material: Type Four S rubber
- Instrument Weight (kg): 30
- Includes: – Instrumental Carry case, – 4 x spare 4S rubber sliders (with backing plate)
- Dimensions: 700 x 700 x 300 mm
- Optional: – Control Testing Wet Pendulum Verification Kit
Air Balancing Hood
- Statistics: min, max, average and sum
- Response Time: 2 to 8 seconds
- Dimensions (micromanometer only): 7.4 in. x 4.5 in. x 2.3 in. (18.8 cm x 11.4 cm x 5.8 cm)
- Weight with Batteries: 7.4 lb. (3.4 kg)
- Pressure Connection: 1/4 in. (6.35 mm) OD straight ports with barbed ends for use with 3/16 in. (4.76 mm) ID flexible tubing
- Data Storage Capabilities: 25,500 samples, time and date stamped
- Logging Interval: User selectable
- Power Requirements: 4 AA-size cells or AC adapter
Digital Manometer
- Min Pressure (in WC): 0
- Max Pressure (in WC): 4
- Min Temperature (° F): 32
- Max Temperature (° F): 104
- Min Temperature (° C): 0
- Max Temperature (° C): 40
- Unit Of Measurement: WC and kPa
- Media Compatibility: Noncorrosive gases
- Resolution: 0.001″ WC
- Accuracy: ±0.5% full-scale (60 to 78°F); ±1.5% full-scale below 60°F and above 78°F
Hot Wire Anemometer
- Velocity: 0 to 6000 ft/min, 0 to 30 m/s
- Resolution: 0,1°
- Accuracy: ±3% of measure or ±3 ft/min (±0.015 m/s), whichever is the greatest, 1 ft/min, 0.01 m/s
- Temperature: -10 to 60°C (14 to 140°F)
- Air Flow: Depending on air velocity and duct dimensions
- Dimensions: 1.0 to 250.0 inches (1.0 to 635.0 cm)
Vane Anemometer
- Velocity: 50 to 6000 ft/min, 0.25 yo 30 m/s
- Accuracy: ±1% of measure or ±4 ft/min (±0.02 m/s)
- Measuring Intervals: 1 second to 1 hour
- Temperature: 0 to 60°C (32 to 140°F) Accuracy ±0.6°C, ±1°F
- Air Flow: Depending on air velocity and duct dimensions
Tour Anderson Flow-meter
- Total Pressure: max. 2 500 kPa
- Temperature Liquid Medium Measurement: -20 – 120°C
- Differential Pressure: TA-SCOPE 0 – 200 kPa, TA-SCOPE HP 0 – 1 000 kPa, - TA-SCOPE 0.1 kPa or 1% of reading, whichever is the highest, - TA-SCOPE HP 0.2 kPa or 1% of reading, whichever is the highest
- Flow: as for differential pressure + valve deviation
- Temperature: <0.2°C
Oventropp Flow-meter
- Max. static pressure: 10 bar
- Differential pressure display: 0.1 – 1,950 mbar
- Temperature measuring range: 0-100°C
- Operating voltage: 6 V
Sound Level Meter
- Frequency Range: 31.5Hz – 8kHz
- Update: Every 0,5 seconds
- Resolution: 0.1dB
- Dynamic Range: 50dB
- Calibration: 94, 114dB
- Accuracy: ±1.4dB
- Dimensions: 278(L) x 76(W) x 50(D)mm

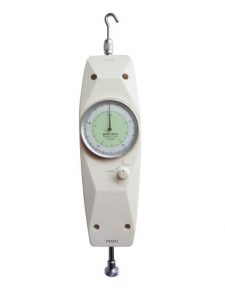

Force Analogue Meter
- Road Journey: 10 mm
- Load Graduation Value: 0.5 kg
- Max Load: 45 kg
Force Digital Meter
- Charging Time: 4~6 hours
- Data Interface: RS232 nine-hole socket
- Load Graduation Value: 0.01 kg
- Max Load: 50 kg
- Power: 7.2V 1.2V×6 NiMH batteries
Pinch Door Force Meter
- Measurement Range: 0–2.000 N
- Measurement Tolerance: +/– 3 N or 3 % whichever is greater
- Stiffness: 500 N/mm
- Gap Width: 50 mm
- Size: 210 x 80 x 50 mm
- Diameter: 80mm
Bus/Train Door Force Digital Meter
- Measurement Range: 20 – 310 N
- Measurement Tolerance: +/– 3 N or 3 % tolerance whichever is greater
- Stiffness: 10 N/mm
- Gap Width: 115 mm
- Measurement Technique: Strain Gauge Bridge Technique
- Size: 260 x 130 x 115 mm
- Diameter: 100mm
Bus/Train Door Force Analogue Meter
- Measurement Range: 50 – 300 N (750 N)
- Measurement Tolerance: +/– 10 N or 5 % tolerance whichever is greater
- Stiffness: 10 N/mm (25 N/mm)
- Gap Width: 115 mm
- Measurement Technique: Trailing Pointer
- Size: 260 x 130 x 115 mm
- Diameter: 100mm
Elevator Door Force Meter
- Measurement Range: 0 – 1,000 N
- Measurement Tolerance: +/– 3 N or 3 % tolerance whichever is greater
- Stiffness: 25 N/mm
- Gap Width: 140 – 510 mm
- Measurement Technique: Strain Gauge Bridge Technique
- Size: 290 x 140 x 60 mm
- Diameter: 58mm
Humidity Hydrometer Tester
- Weight of Device: 515g/1.13lb
- Operating Humidity: Less than 85% R.H
- Operating Temperature: 0-50°C (0-122°F)
- Resolution: 0.1°C/0.1°F
- Accuracy: ± 0.8°C/1.5°F
- Dimensions: 177 x 68 x 45mm
- Electrical Power Supply: UM3/AA (1.5 V) x 6 batteries
Fire Testing Smoke Machine – Battery Powered Portable
- Operating Time: – Battery Mode: 11 minutes, – Switching Power Supply: NON-stop, as long as there is fog liquid in the tank
- Fluid Tank Capacity: 0.4l
- Fluid Consumption: 16 ml/min
- Warm Up Time: 1 second (approx.)
- Control: DMX512, Manual, Wireless (optional), Cable Remote (Optional)
- Size: L293 W108 H238 mm
- Power: 600 W
Fire Testing Smoke Machine – Electrically Charged Portable
- Fluid Consumption: 110 ml/min
- Warm Up Time: 7.5 minutes (approx.)
- Control: Manual
- Size: L346 W152 H251 mm
- Power: 1450 W
- Output: 20,000 ft³/min (566 m³/min)
Fire Testing Smoke Machine – Horizontal Discharge
- Operating Time: 1 hrs at max. output
- Fluid Tank Capacity: 6l
- Fluid Consumption: 100 ml/min
- Warm Up Time: 8.5 minutes (approx.)
- Control: DMX512, Timer, Manual, Wireless
- Size: L580 W278 H264 mm
- Power: 1450 W
- Output: 20,000 ft³/min (566 m³/min)
Fire Testing Smoke Machine – Waterproof Vertical Discharge
- Operating Time: 8 minutes at max. output
- Fluid Tank Capacity: 2.4l
- Fluid Consumption: 270 ml/min
- Warm Up Time: 7.5 minutes (approx.)
- Control: DMX512, Timer, Manual, Wireless
- Size: L301 W194 H414 mm
- Power: 1600 W
- Output: 8 metres height
